杭州中聚空分设备制造有限公司是一家高新技术企业，是一家集研究、开发、制造制氮机（PSA制氮设备）、工业制氧机（PSA制氧设备，VPSA制氧设备）、气体纯化、压缩空气净化等气体设备，还承接各种气体非标设备的设计、制造和技术咨询。公司座落于杭州市富阳区新登镇。产品价格请来电咨询或者面议，为您提供图纸，项目书，报价单。非常感谢！

采用优质碳分子筛为吸附剂，利用变压吸附原理，直接从压缩空气中获取氮气。

工作原理

在一定的压力下，由于动力学效应，氧、氮在碳分子筛上的扩散速率差异较大，利用氧分子被碳分子筛大量吸附，氮分子在气相富集，达到氧氮分离。

由于碳分子筛对氧的吸附容量随压力的不同而明显差异，降低压力，即可解析碳分子筛吸附的氧分子，使碳分子筛再生，得以重复循环使用。

采用两个吸附塔流程，一塔吸附产氮，一塔解析再生，循环交替，连续产生高品质氮气。

制氮机技术指标

流量：3-1000Nm3/h          纯度：95%-99.9995%

露点：≤-40℃（常压下）     压力：0.6Mpa（可调）

制氮设备

技术特点

1、合理的内部构件，气流分布均匀，减轻气流高速冲击。

2、完善的流程设计，最优的使用效果。

3、独特的分子筛保护措施，延长碳分子筛的使用寿命。

4、智能连锁不合格氮气排空装置，保证产品氮气质量。

5、可选配氮气装置流量，纯度自动调节系统，远程控制系统等。

6、操作简便，运行稳定，自动化纯度高，可实现无人运行。

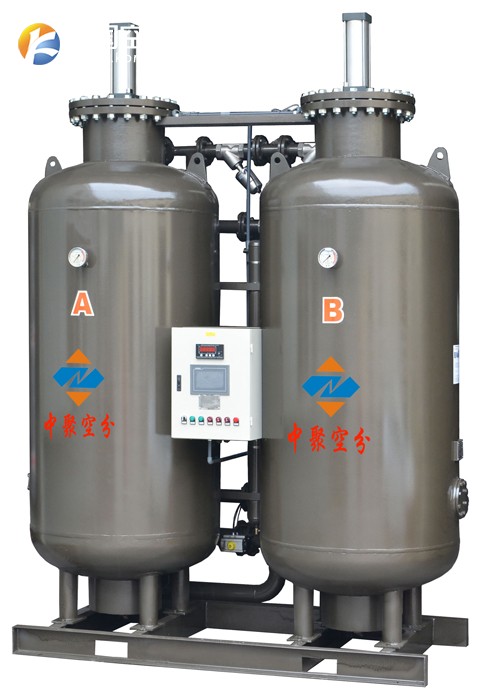

ZBN type pressure swing adsorption nitrogen making equipment

Hangzhou poly air separation equipment manufacturing Co. Ltd. is a high-tech enterprises, is a collection of research, development and manufacture of nitrogen machine (PSA nitrogen equipment), industrial oxygen machine (PSA VPSA oxygen equipment, oxygen equipment), gas purification, gas, compressed air purification equipment, also undertake a variety of non gas design standard equipment, manufacturing and technical consultation. The company is located in Fuyang City, Hangzhou City, the construction of industrial function area. The price please inquire or negotiable, provide drawings, project quotation book for you. Thank you very much.

Using high quality carbon molecular sieve as adsorbent, using pressure swing adsorption principle, directly from compressed air to obtain nitrogen.

Working principle

Under a certain pressure, the diffusion rate of oxygen and nitrogen in the carbon molecular sieve is different due to the dynamic effect, and the oxygen molecule is adsorbed by the carbon molecular sieve, and the nitrogen molecule is enriched in the gas phase to reach the oxygen and nitrogen separation.

Because the adsorption capacity of the carbon molecular sieve is different with the pressure, and the pressure is reduced, the oxygen molecules adsorbed on the carbon molecular sieve can be resolved, and the carbon molecular sieve can be regenerated and reused.

Two adsorption tower processes are used, one column is used for producing nitrogen, one tower is regenerated, and the circulation is alternately, and the continuous generation of high quality nitrogen gas is produced.

Technical index of nitrogen making machine

Flow: 3-1000Nm3/h Purity: 95%-99.9995%

The dew point: less than -40 DEG (atmospheric) pressure: 0.6Mpa (adjustable)

Nitrogen making equipment

Technical characteristics

1, reasonable internal components, air distribution, to reduce the impact of high speed.

2, improve the process design, the use of the best results.

3, the unique molecular sieve protection measures to extend the life of carbon molecular sieve.

4, intelligent linkage of nitrogen gas is not qualified to ensure the quality of nitrogen gas products.

5, optional nitrogen flow, automatic control system, remote control system, etc..

6, easy to operate, stable operation, high automation, can be achieved without running.
