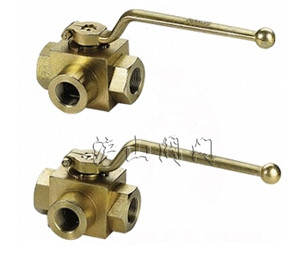

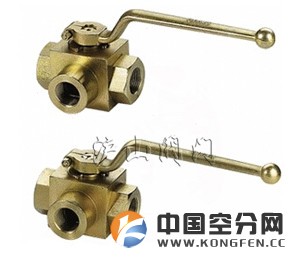

KHB3K(BK3)系列二位三通球阀
http://www.hushanfamen.com/Valve_Product_1153.html
|
产品名称: |
KHB3K(BK3)系列二位三通球阀
|
产品型号: |
KHB3K(BK3) |
产品口径: |
DN10-50mm |
产品压力: |
16-32MPa |
产品材质: |
铸铁、铸钢、不锈钢 |
